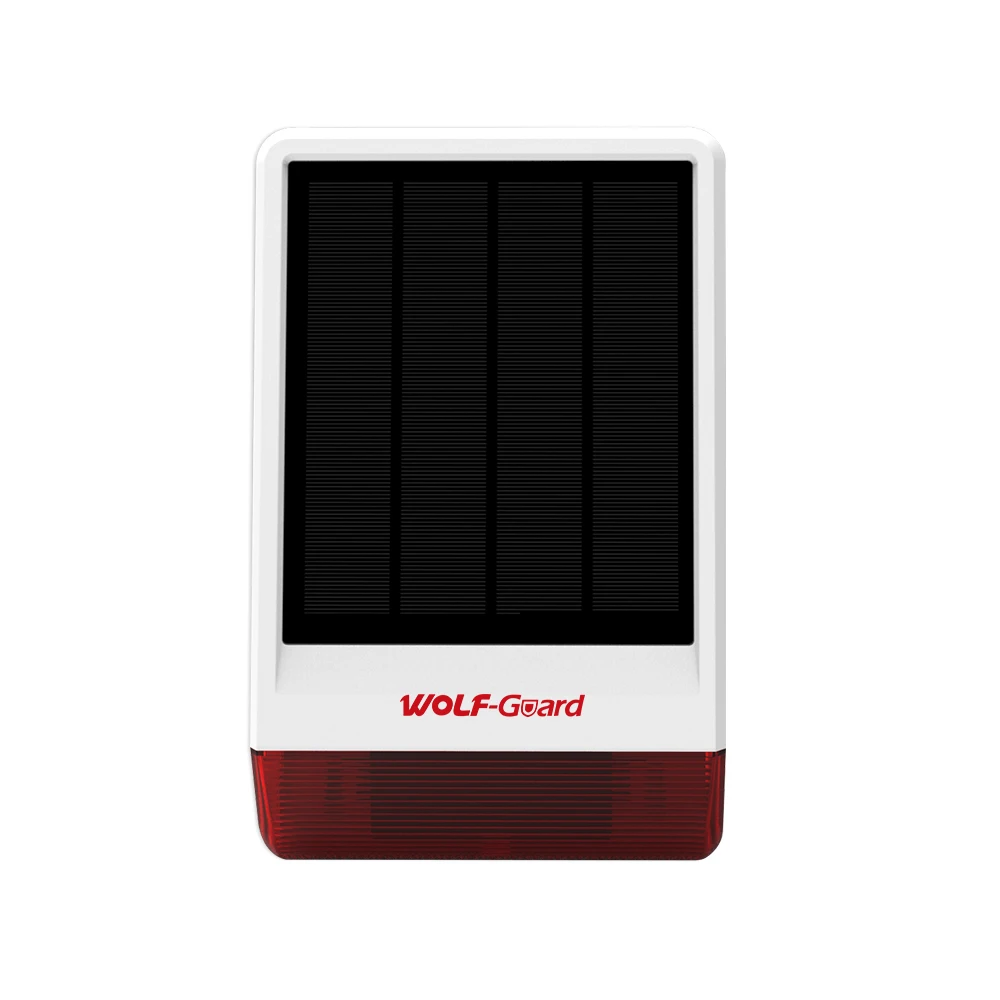

WOLF-GUARD WIRELESS WEATHER-PROOF SOLAR SIREN OUTDOOR

Note:

• 1.JD-W06 outdoor siren is very easy to install, When the alarm of your system is triggered, it rings out and its LEDs switch on.

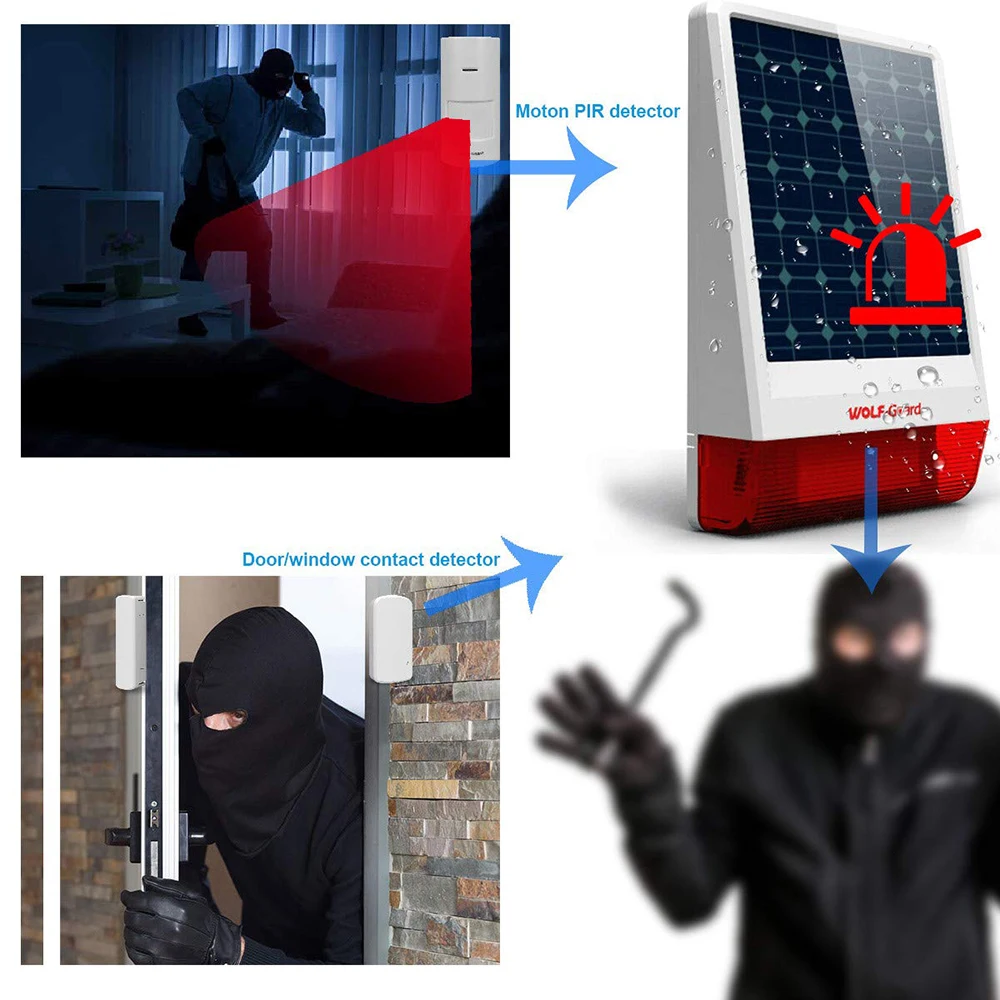

• 2.It can be used as the host to add other alarm device,like door detectors/PIR motion detectors/Remote Controller/SOS button, and so you can DIY these alarm device to build your home alarm security system!
• 3.This DIY Home Alarm System for the elderly or patient who need more care. An emergency alert system gives them and you peace of mind. Imagine the freedom of not worrying all the time. If mom or dad need help all they need to do is press the SOS help button and the siren will big sound alert your neighbor or police!
• 4.It also can be use as an alarm device to match the wolf-guard host to build a home alary security system!!
• 5.The Wireless Distance is >80 Meter(no obstacle)!and the Solar Battery's Standby Time is about 10 days!!

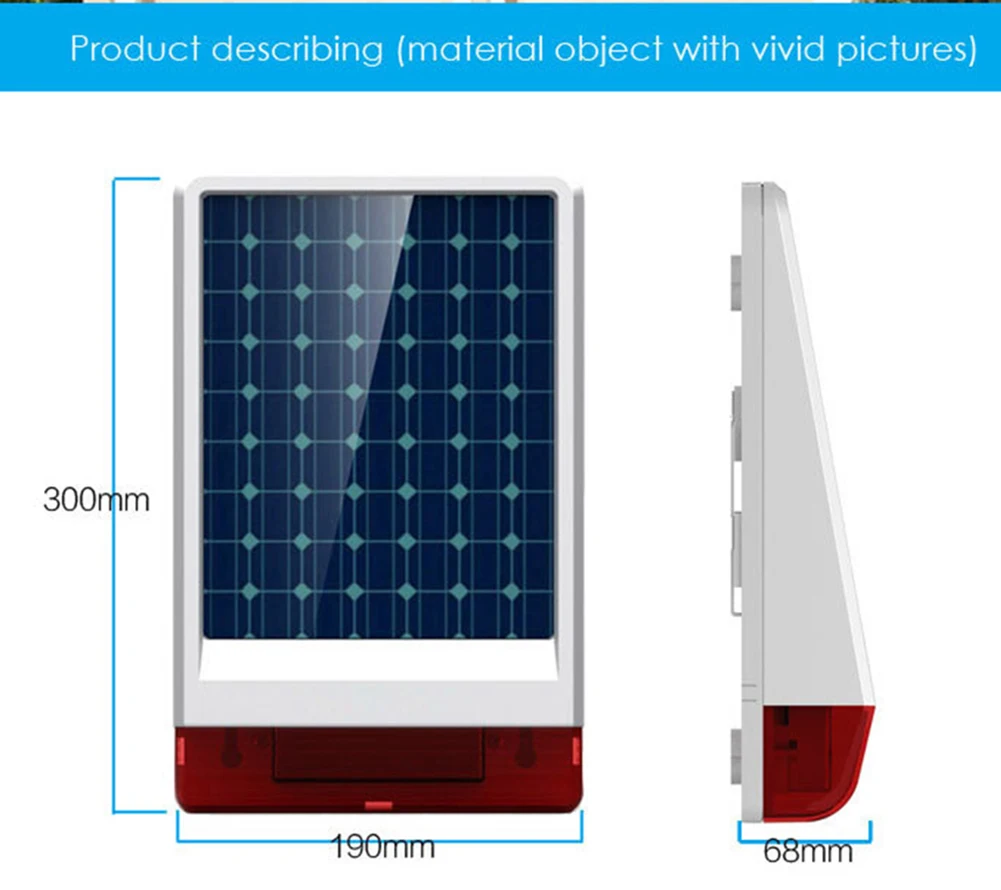

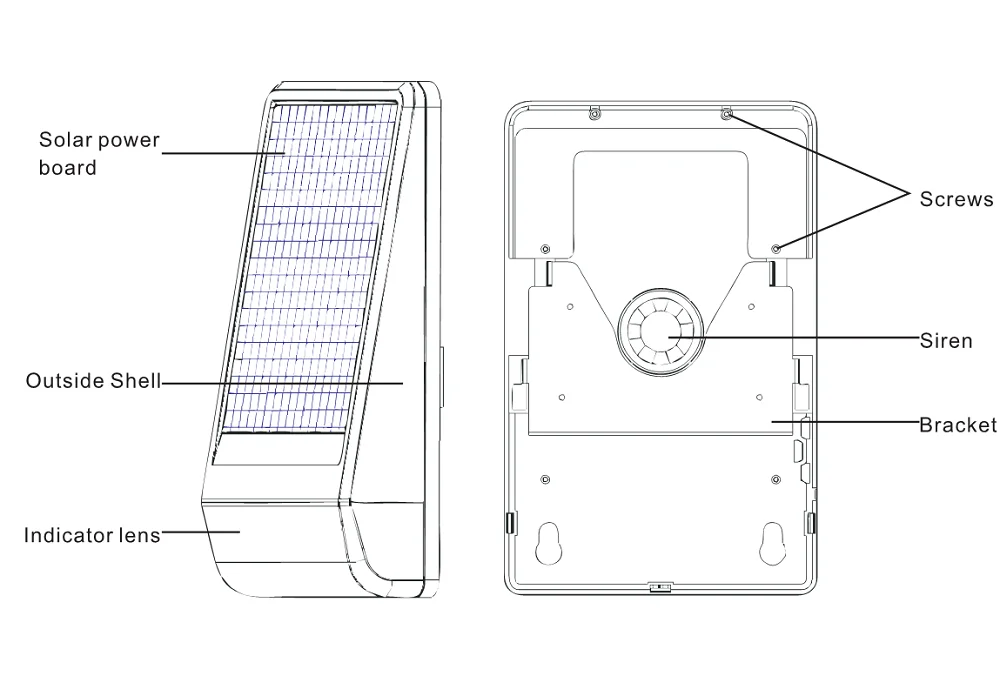

JD-W06 Solar Siren:

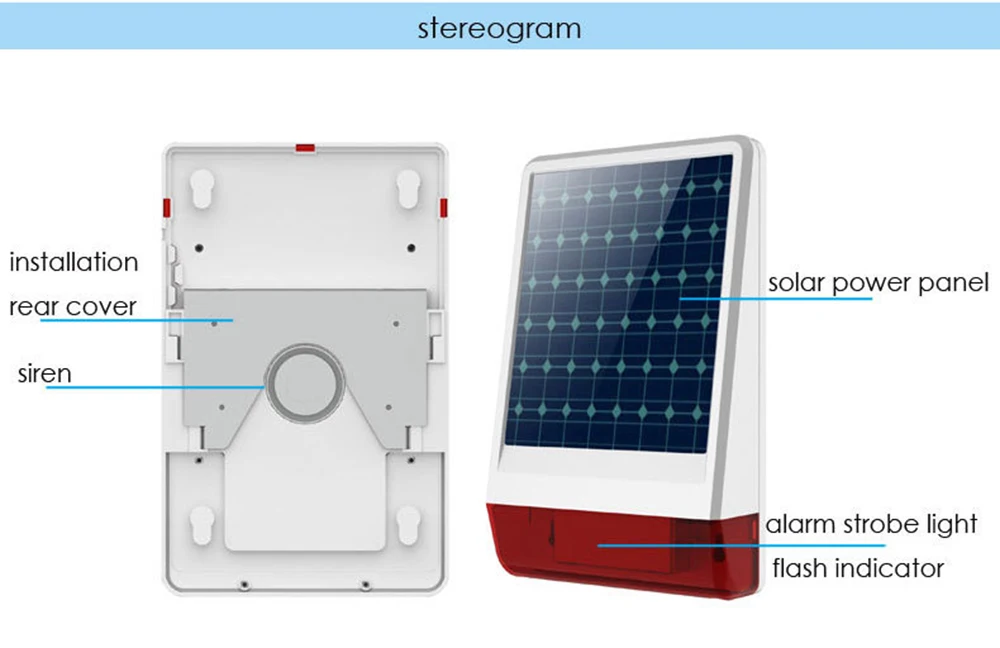

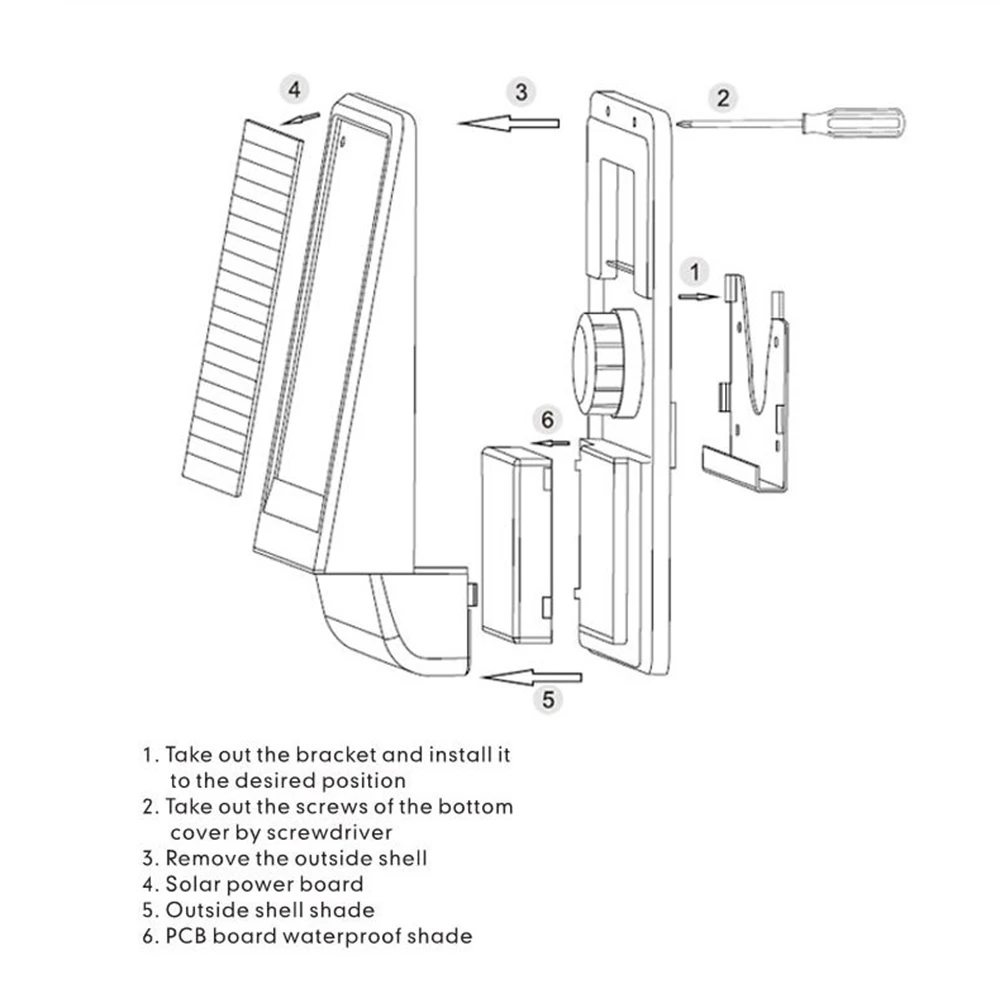

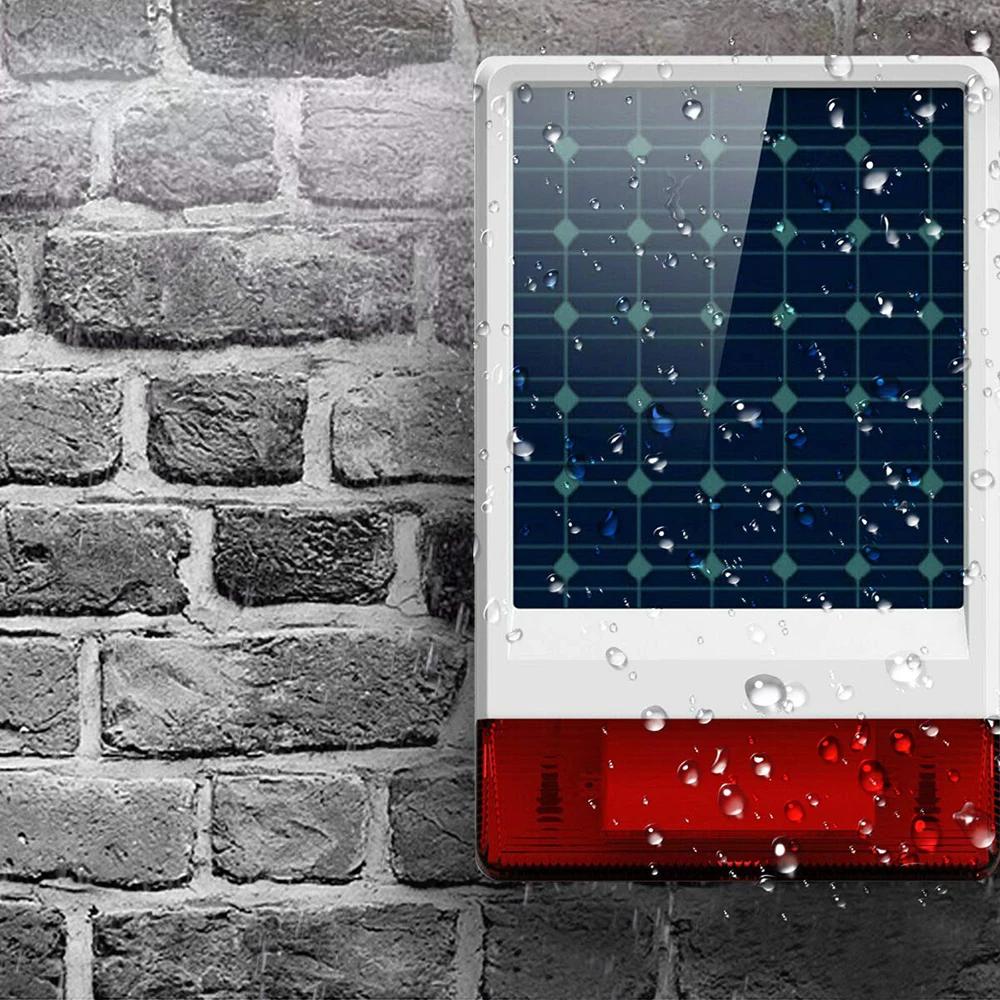

• 1.Waterproof design made it can work in normal state in any weather outdoor.Easy to install, when the alarm is triggered, it will illuminate the red high-bright flash with a sharp alarm sound

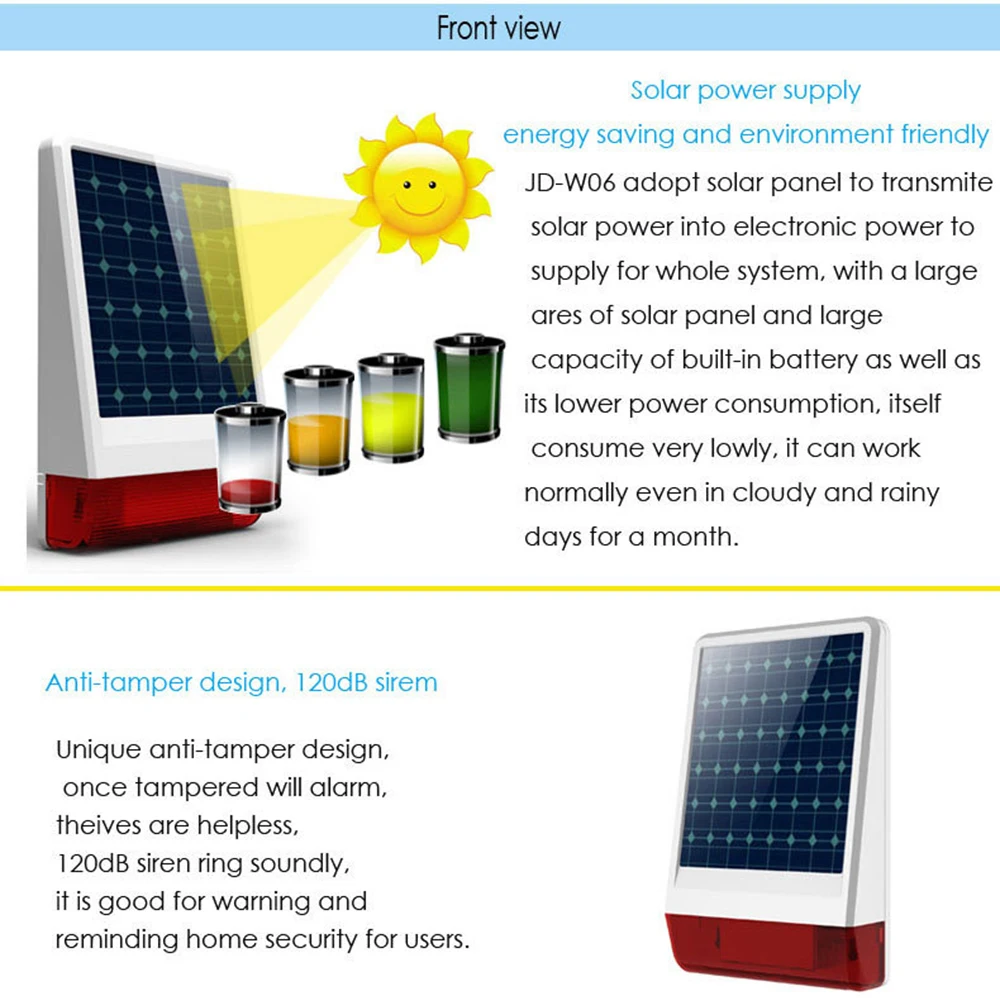

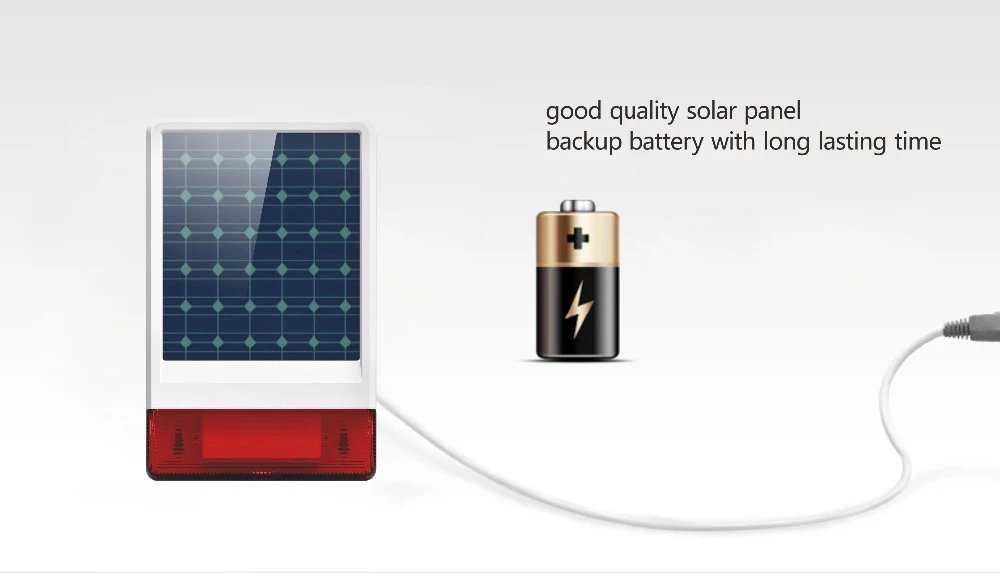

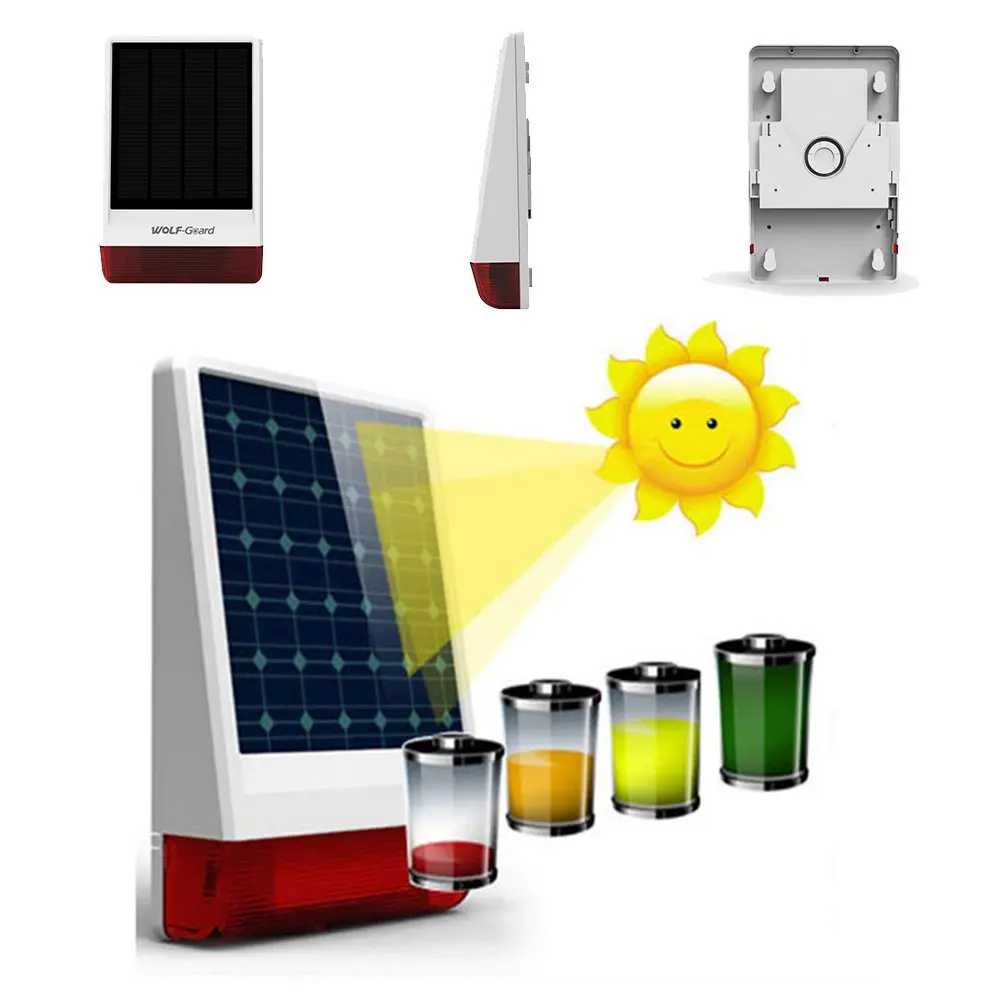

• 2.Large area solar panels,don't need strong sunlight, the battery can store electricity.And the Solar Battery's Standby Time is over 10 days without any sunshine.
• 3.It can work as a high power flash siren as well as a spot alarm panel. As an alarm panel, it can work with at most 99 wireless detectors.
• 4.The Wireless Distance is >80 Meter(no obstacle).
• 5.It can be used as the host to add other alarm device,like door detectors/PIR motion detectors/Rmote Controller, and so you can DIY these alarm device to build your home security system!

Technical Parameters:

• 1.Standby current: <10mA
• 2.Solar power recharging current: 155mA
• 3.External power supply: DC12V/1.2A
• 4.Recharging current: 310mA
• 5.Alarm current: 350mA
• 6.Wireless receiving frequency: 315/433±0.5MHZ
• 7.Wireless receiving distance: >80M (no obstacle)
• 8.Working temperature: +10℃ ~+40℃
• 9.Humidity: £ 90% (no fog)
• 10.Built-in battery: Polymer battery 7.4V/2100mA

HW-03D PIR Detector:

• 1.Sensor: Passive IR sensor with low noise
• 2.Working Voltage: DC6V (4pcs AAA 1.5V dry batteries)
• 3.Static Current: <60uA
• 4.Alarm Current: <20mA
• 5.Working Temperature: 5℃~45℃
• 6.Working Humidity: ≤95% (no fog)
• 7.Transmitting Frequency: 315/433 + 0.5MHz
• 8.Transmitting Distance: No obstacle 80M
• 9.Detecting Distance: 12M max
• 10.Detecting Angle: Horizontal 110°, Vertical 60°

YK-11 Remote Controller:

• 1.Wireless waterproof intelligent remote controller: User-friendly and elegant UI, designed especially for you
• 2.Design fit into human hand structure: Unique big button, convenient for using, super transmitting distance for remote control
• 3.Silica gel material, perfectly waterproof: Suitable for use in a variety of occasions
• 4.Mirco-power consumption PCB design: Internal 2pcs lithium battery, durable and long lasting

Technical Parameters:

• 1.Shell Material: Waterproof Silica gel+ABS
• 2.Power Supply: 3V-12V
• 3.Working Frequency: 315MHz/433MHz/868MHz
• 4.Operating Range: 80m-100m
• 5.Transmission Currency: ≤7mA
• 6.Battery: 2pcs 3V CR2016 Lithium battery
• 7.Working Temperature: -10℃~40℃
• 8.Working Humidity: ≤90% RH
• 9.Dimension: 68.8*35.8*11mm

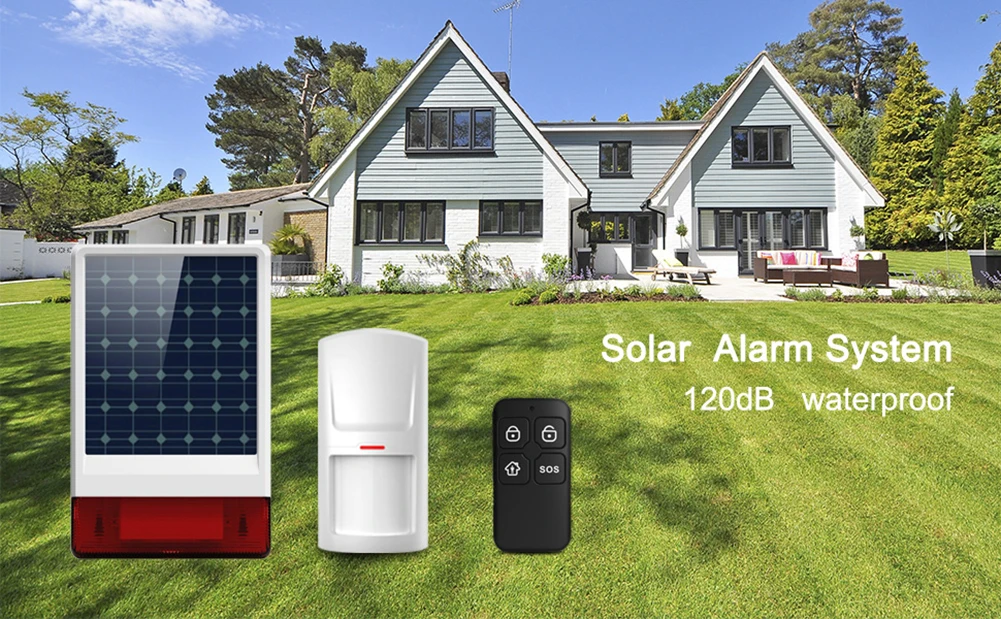

Package Including:

• 1 x JD-W06 Outdoor Solar Siren
• 1 x HW-03D PIR Sensor(not include battery)
• 2 x YK-11 Remote Controller
• 1 x Power Supply
• 1 x Manual
